Introduction to Algorithms

• The solution to any computing problem involves executing a series of actions in a specific order. A procedure for solving a problem in terms of
  1. the actions to be executed, and
  2. the order in which these actions are to be executed
     is called an algorithm.

• Specifying the order in which statements are to be executed in a computer program is called program control

• Pseudocode is an artificial and informal language that helps you develop algorithms.

Flowcharts

• A flowchart is a graphical representation of an algorithm or of a portion of an algorithm.
• Flowcharts are drawn using certain special-purpose symbols such as:
  • rectangles
    • diamonds
    • rounded rectangles, and
    • small circles

• these symbols are connected by arrows called flowlines.

• Like pseudocode, flowcharts are useful for developing and representing algorithms, although pseudocode is preferred by most programmers.

• Flowcharts clearly show how control structures operate.

• When drawing a flowchart that represents a complete algorithm, a rounded rectangle symbol containing the word Begin is the first symbol used in the flowchart;
• a rounded rectangle symbol containing the word End is the last symbol used.

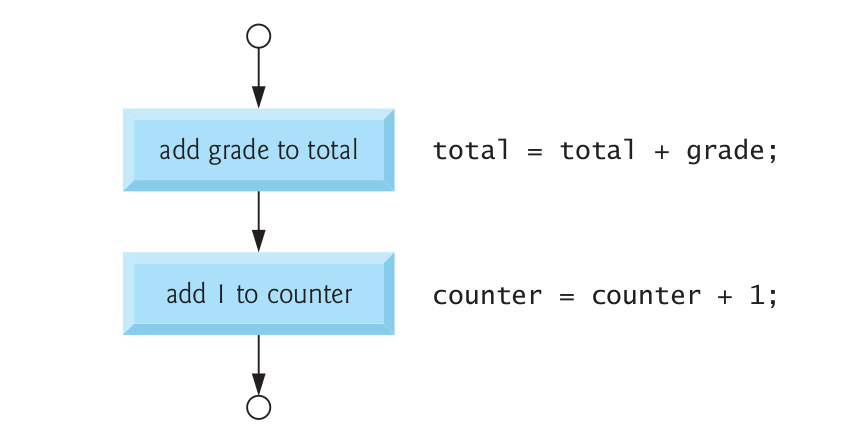

• When drawing only a portion of an algorithm as in Figure above, the rounded rectangle symbols are omitted in favor of using small circle symbols, also called connector symbols.
• Perhaps the most important flowcharting symbol is the diamond symbol, also called the decision symbol, which indicates that a decision is to be made.
